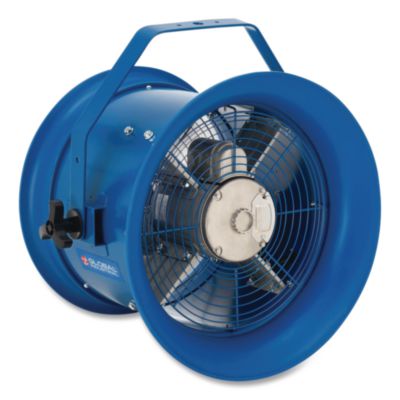

High Velocity Drum Fan with Yoke Mount, 14", 1 Speed, Blue
Product Overview
Designed to project large amounts of air long distances, High Velocity Drum Fan provides fresh air on loading docks, in warehouses, and down assembly lines, or to dry out after a flood and exhaust fumes. It has an efficient single-speed direct-drive TEAO (Totally Enclosed Air Over) 1/3 hp motor with three galvanized aluminum fan blades. It comes with a yoke mount bracket that allows the unit to be used freestanding for portability or mounted on a wall or column for more permanent placement. Additional kits are available separately for more mounting options.
Key features
- Ideal for industrial air circulation.

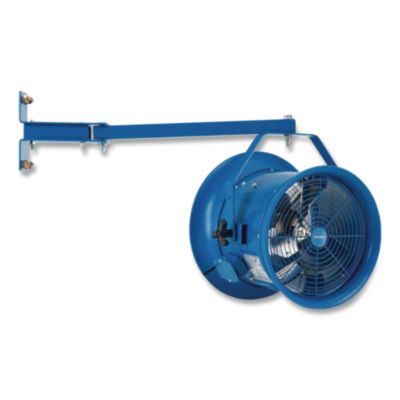

- Can be used free-standing or mounted on a column or wall with included yoke bracket.
- Equipped with a single-speed direct-drive 1/3 hp TEAO motor for reliable performance.
- Features a polyethylene and metal housing for impact and corrosion resistance.
- Comes with three galvanized aluminum blades for efficient airflow.
- Includes a steel wire guard to protect the fan blades and enhance operator safety.
- 12-ft, three-prong power cord reduces reliance on extension cords.
| Item # | GBE293092 |
| SKU | 293092 |
| Brand | Global |
| Category | Electrical & Lighting Supplies |
| Unit | EA |
| Global Product Type | Industrial Floor Fans |
| Fan Head Size | 14" |
| Fan Type | Industrial |
| Oscillates | No |
| Color(s) | Blue |
| Height (Max) | 22.43" |
| Material(s) | Polyethylene |
| Voltage | 115 V/208-240 V |
| Number of Speeds | 1 |
| Amps | 4 A/2 A |
| Maximum Room Size | 3,000 to 4,500 sq ft |
| Horsepower | 1/3 hp |
| Housing Material | High-Impact Polyethylene |
| Diameter | 14" |
| Cord Length | 12 ft |

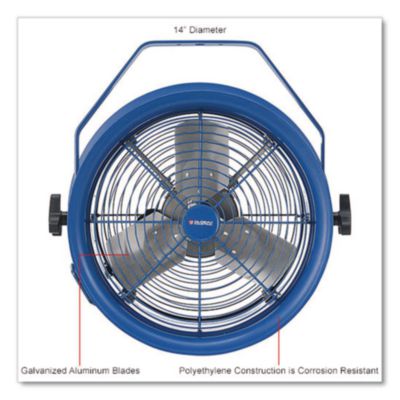

| Blade Material | Galvanized Aluminum |
| Blade Color | Silver |
| Air Flow (CFM) | 6,800 CFM |
| Number of Blades | 3 |
| Built-In Light | No |
| Guard Color | Black |
| Guard Material | Steel |
| Housing Color | Blue |
| Housing Finish | Polyethylene |
| Motor Phase | Single |
| Motor Size | 1/3 hp |
| Motor Type | Totally Enclosed Air Over |
| Noise Rating (dBA) | 77.6 dBA |
| AC Voltage | 115 to 120 V |
| Fan Width | 14" |
| Switch | Built-In On/Off Rocker |
| Style | Industrial |
| Fan Speed (RPM) | 1,720 RPM |
| Light Kit Included | No |
| CFM/Watts | 400 W |
| Maximum Operating Speed (RPM) | 1,720 RPM |

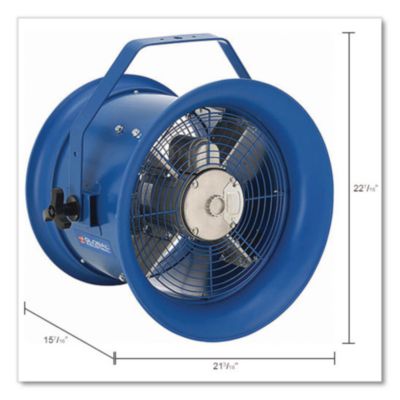

| Width | 21.19" |
| Depth | 15.43" |
| Length | 14" |
| Product Biodegradability Indicator | N |
| Product Compostability Indicator | N |

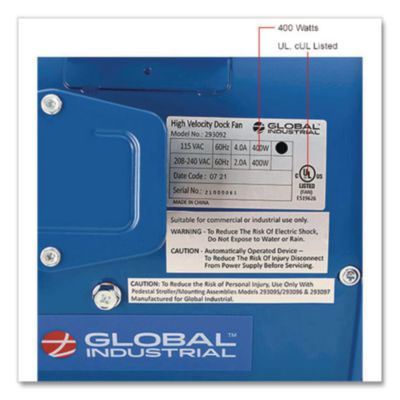

| Compliance Standards | UL Listed |
| Pre-Consumer Recycled Content Percent | 0% |
| Post-Consumer Recycled Content Percent | 0% |
| Total Recycled Content Percent | 0% |
| Weight | 44.9 lbs. |
| Dimensions | 22.44 × 21.42 × 15.43 in |
| Carton pack | 1 EA per carton |
| Sell unit | EA |
